Odor scrubber for baking ovens

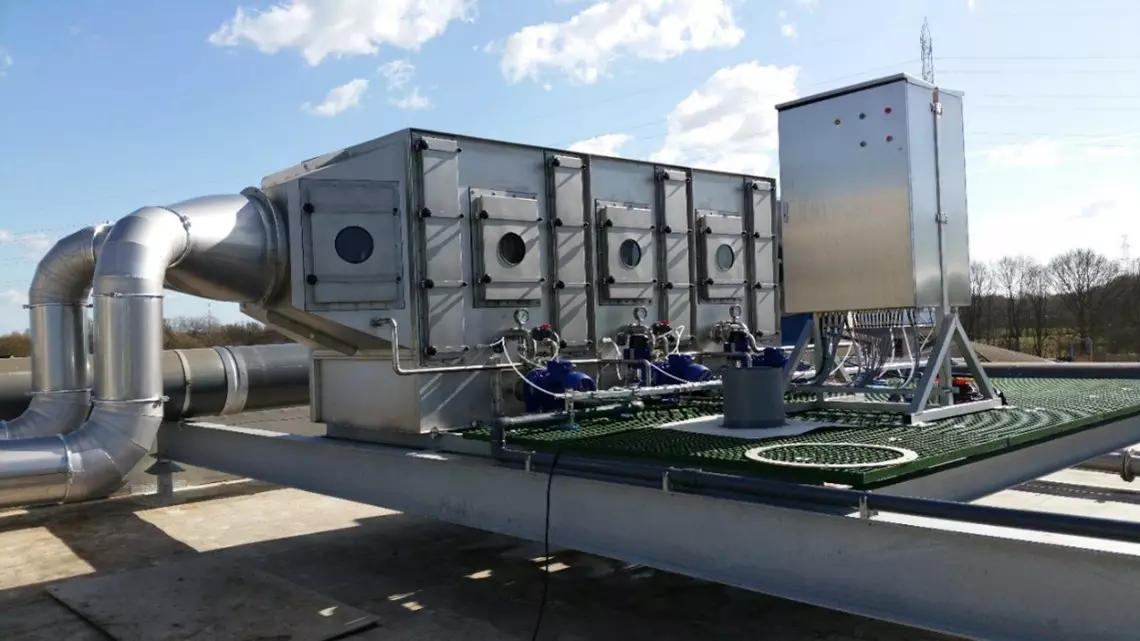

A horizontal open scrubber made of stainless steel. This scrubber consists of a rectangular housing with rectifiers, three washing sections with integrated washing liquid collection and droplet separators. The washing sections are equipped with an access hatch. The housing is equipped with connection cones to a pipe diameter of Ø 630 mm. The connection cone at the gas entrance is also equipped with an inspection hatch.
As a washing liquid for the first washing section, caustic soda can be applied. Sodium hypochlorite can be used as a washing liquid for the second washing section. For the third washing section, a neutral washing liquid should be used.
Get in touch with us
The scrubber is constructed, seen in flow direction, from the following sections:
- Caustic soda (NaOH) section, alkaline washing section with caustic soda solution, for removing the acid forming components and fats.
- Droplet separator, for preventing contamination of washing water of the sodium hypochlorite washing section
- Sodium hypochlorite (NaOCl) section, oxidative washing section with sodium hypochlorite solution, for washing out the odor components and any fumes from the caustic soda wash section.
- Droplet separator, for preventing contamination of washing water from the neutral washing section.
- Neutral section, washing section with clean washing water, for a final capture of water-soluble gas particles and any fumes from the sodium hypochlorite washing section.
- Fine separator, for removing the entrained droplets.
Technical specifications
| Air flow rate | : | 8,000 Am3/h |
| Dimensions (L x W x H) | : | 5.000 x 1.250 x 1.750 mm |
| Material | : | Stainless Steel 316L |
| Location | : | outdoor |
| Empty weight | : | 1,500 kg |
| Operating weight | : | 4,500 kg |
The system is completed with a Siemens S7-1500 PLC in a Rittal stainless cabinet.
