Custom Scrubber System with Remote Support for Optimal Performance

Scrubber installation

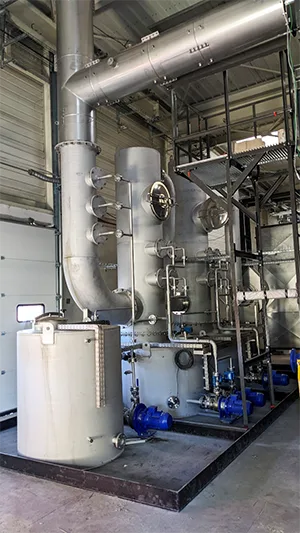

Incinerator ScrubberThe designing, fabrication and supply of a custom-made open spray scrubber system that is specially configured for hot flue gas cleaning from an incinerator installation.

The scrubber system is a vertical 3-stage system which configured with a quench for the adiabatic cooling process of the gas, an alkali stage for the neutralization of the HF and at last a neutral spray section.

The dust particles are absorbed throughout all the stages in the scrubber.

Advanced Components for Efficient Scrubbing

The system is equipped with a control cabinet with a Siemens PLC, KSB pumps, Endress+Hauser instrumentation, chemical dosing system and a 15 m chimney and a disc separator (clarifier) to recycle the spraying liquid.

Remote Support for Hassle-Free Maintenance

For customers benefits Ravebo provided the system with a remote support which means that Ravebo monitors the installation remotely for external support and optimization of the scrubber

Cloud-Based Data Storage for Enhanced Reliability

All relevant scrubber data and measurement data from the CEMS will be continuously stored in a cloud-based system to prevent data loss in case of a hardware failure.

Process conditions (design data scrubber)
Gas flow : 3,000 Nm3/h
Design temperature : 850 °C
Operating pressure : atmospheric
Design pressure : atmospheric
Gas composition
Dust : 800 mg/Nm3
HF : 35 mg/Nm3
Emission limit value scrubber
Dust : 5 mg/Nm3
HF : 1 mg/Nm3
